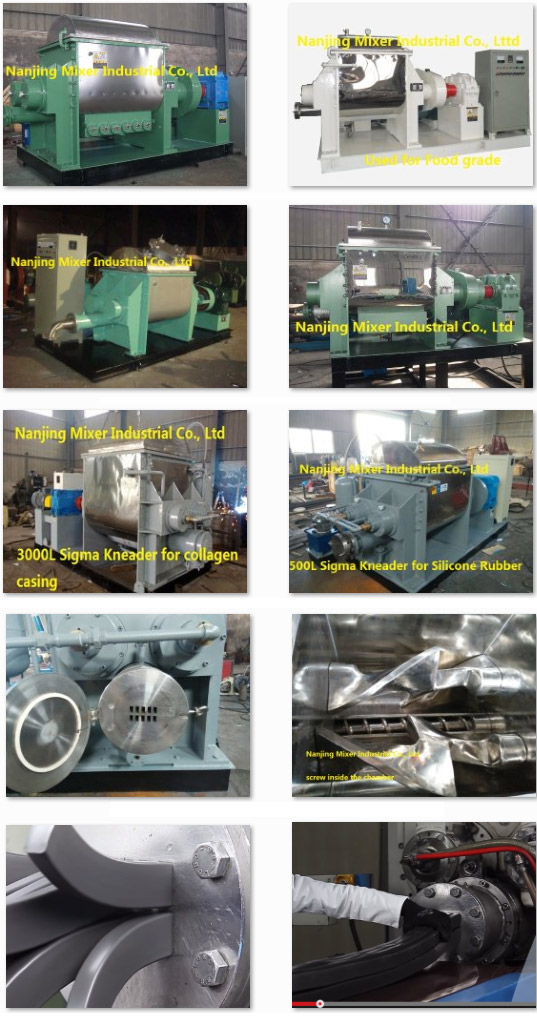

Sigma Kneading Extruder
Sigma Mixer Kneader Extruder ( with screw extruder discharge) :
The most common device employed in high viscosity processes is the sigma blade mixer with screw extrusion for discharge. A sigma blade mixer is composed of two z-shaped blades mounted on a horizontal trough. The blades run toward each other at different speeds and in a bottom cavity, a mixing screw rotates in reversible directions, either feeding materials to the sigma blades during the mixing cycle or extruding the finished product during discharge.
Technical Specification:
|
Model |
Total Volume(L) |
Working Volume(L) |
Motor Power (KW) |
Cooling/heating |
|
LGNH－ 50 |
50 |
30 |
2.2 ～7.5 |
water /steam/electric/oil |
|
LGNH－ 100 |
100 |
60 |
3 ～ 11 |
water /steam/electric/oil |
|
LGNH－ 200 |
200 |
120 |
5.5 ～15 |
water /steam/electric/oil |
|
LGNH－ 300 |
300 |
180 |
7.5 ～ 22 |
water /steam/electric/oil |
|
LGNH－ 500 |
500 |
300 |
11 ～37 |
water /steam/electric/oil |
|
LGNH- 1000 |
1000 |
600 |
18.5 ～75 |
water /steam/electric/oil |
|
LGNH- 1500 |
1500 |
900 |
22～132 |
water /steam/electric/oil |
|
LGNH- 2000 |
2000 |
1200 |
37～160 |
water /steam/electric/oil |
|
LGNH- 3000 |
3000 |
1800 |
55～185 |
water /steam/electric/oil |
|
LGNH -4000 |
4000 |
2400 |
75～220 |
water /steam/electric/oil |
|
LGNH- 5000 |
5000 |
3000 |
90～250 |
water /steam/electric/oil |
|
LGNH -6000 |
6000 |
3600 |
132～250 |
water /steam/electric/oil |
